Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Guangzhou, China | OE NO.: | 3482119034 |
|---|---|---|---|
| Size: | 430*215*450 | Type: | Clutch Cover |
| Car Make: | Scania | Car Model: | 4 - Series 114 G/340 |
| Year: | (1995/09 - 2004/09) | Engine Type: | DC 11.03 |
| High Light: | DSC 11.16 clutch plate cover assembly,114G clutch plate cover assembly,3482119034 |
||
Clutch Cover 430*215*450 3482119034 DSC 11.16 Scania Clutch Kit
This clutch cover is used for Scania. Car model is Scania 4 - series (1995/09 - 2004/09) / 3 - series (1988/01 - 1996/12) / 2 - series (1980/05 - 1988/05) / 3 - series bus (1989/01 - 1997/12). Engine type / Application is DSC 11.16 / DSC 11.17 / DSC 11.21 / DSC 11.13 / DSC 11.18 / DSC 11.23 / DSC 11.30 / DSC 11.22 / DSC 11.70 / DSC 9.10 / DSC 9.07 / DSC 9.08 / DTC 11.02 / DSC 14.08 / DS 9.06 / DS 9.05 / DSC 9.02 / DS 9.01 / DS 8.05 / DS 8.06. The size of this clutch pressure plate is 430*215*450mm. The outer diameter is 430mm, the inner diameter is 215mm, and the pitch circle is 450mm. OE number of this clutch cover assembly / Scania Clutch Kit is 3482119034 / 1102 425 / 234 682 / 264 786 / 294 884 / 306 600 / 327 557 / 329 439 / 394 884 / 524 466 / 571 079 / 571 208 / 571 210 / 571 214 / 571 216 / 571 219.
Product Description
OE NO.
| SCANIA | 1102425 |
| SCANIA | 264786 |
| SCANIA | 306600 |
| SCANIA | 234682 |
| SCANIA | 329439 |
| SCANIA | 327557 |
| SCANIA | 294884 |
| SCANIA | 524466 |
| KM Germany | 0280103 |
| KM Germany | 0280184 |
| KM Germany | 0690005 |
| KM Germany | 028 0103 |
| KM Germany | 069 0005 |
| LEMF?RDER | 3482119034AT |
| LEMF?RDER | 3482119034 |
| LEMF?RDER | 3482 119 034 |
Car Fitment
| Car Type | Year |
|---|---|
| Scania 4 - series |
(1995/09 - 2004/09)
 |
| Scania 3 - series |
(1988/01 - 1996/12)
|
| Scania 2 - series |
(1980/05 - 1988/05)
|
| Scania 3 - series bus |
(1989/01 - 1997/12)
|

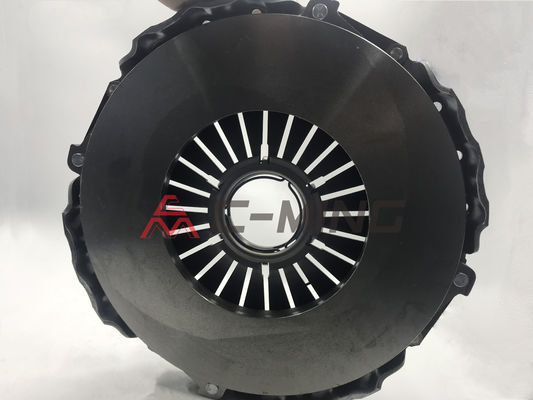

Detailed Image
The clutch cover is an essential component of the clutch system presenting a separable connection between the engine and the drive train, and furthermore serves the transmission of power.
Alongside the flywheel and the clutch disc, the clutch cover forms a friction system and is fixed to the flywheel via a screw connection of the housing. In doing so, the clutch cover ensures the transfer of the engine torque via the clutch disc to the gear shaft by pressing the clutch disc onto the flywheel. Furthermore, the clutch cover acts as an overload protection (e.g. switching errors) for the whole drive train. The obscured release bearing is the transmission element between the rotating clutch cover on the engine’s part and the fixed actuator system on the gearbox’s part. It is centrally managed and equipped with a self-centring mechanism.
