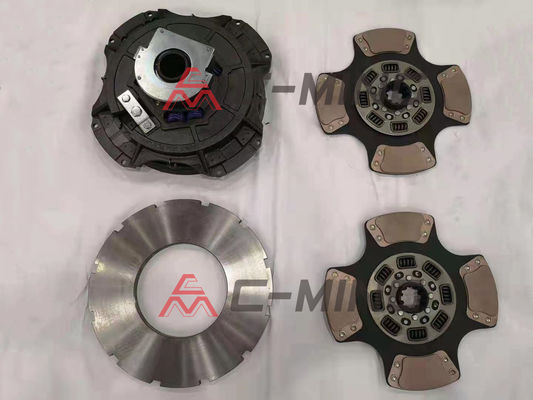

350mm Eaton Clutch Kit 5 Piece Set 107050-59 3200Ibs

5-Piece set 350mm 107050-59 14''*2''*10 Eaton Clutch Kit

The OE number of this clutch assembly / Eaton Clutch Kit is 168036 / 107050-59. Ref NO. of the Rear Disc is 128229, the Ref NO. of the Front Disc is 128230, the Ref NO. of the Cover Assembly is 127390-1, and the Ref NO. of the intermediate pressure plate is 113C49. This clutch set is used for . Standard Angled Spring Heavy Duty 14 inch x 2 inch x 10 Clutch AssemblyClamp load 3600 lbs. 8 Springs 4 Pad Facing Torque rating 1400 ft/lb. Flywheel, Volante minimum opening 7 inch Dual Zerk Super Duty All clutch assemblies are without clutch brakes or drive pins. Plate Load: 3200Ibs.

Product Information

Detailed Image

The Pressure Plate is the most critical part to the whole clutch assembly. The pressure plate applies a clamping force (pressure) which holds the driven friction disc between it and the flywheel. The pressure plate is fixed to the flywheel with bolts and they rotate together. The pressure plate contains a diaphragm or springs that apply the pressure on the main casting or driving surface. In order to release or disengage drive, the diaphragm or clutch levers are actuated which allows the main casting to lift off the driven disc.

The Release Bearing provides a medium of actuation between the rotating clutch assembly and the static clutch fork and transmission. The bearing will absorb the force to release the clutch and also reduce wear between rotating and non-rotating components.
