FCR55-1-4/2E Clutch Release Bearing Assembly For Mitsubishi 4G52 / 4G63

I'm Online Chat Now
Certification
China Chongming (Guangzhou) Auto Parts Co., Ltd certification
China Chongming (Guangzhou) Auto Parts Co., Ltd certification
The salesmen in this company are all girls. They are very patient and responsible. They work very carefully. The main product of their factory is truck clutch. The quality of the product is middle and high-end grade, but the quality of the product can be adjusted according to the choice of materials. I will do more and bigger business with them.

—— RAKESH CHAUDHARY

Put this in my 2003 4.0 TJ who’s original clutch was starting to slip at 170k. Everything fit as it should, no issues on install. I opted to get the crown automotive Metal TOB as the one that came with this kit was plastic. First drive clutch was very smooth, almost too smooth for my liking, it felt like there was barely any pressure needed to push

—— Christian Smith

FCR55-1-4/2E Clutch Release Bearing Assembly For Mitsubishi 4G52 / 4G63

FCR55-1-4/2E Clutch Release Bearing Assembly For Mitsubishi 4G52 / 4G63
FCR55-1-4/2E Clutch Release Bearing Assembly For Mitsubishi 4G52 / 4G63 FCR55-1-4/2E Clutch Release Bearing Assembly For Mitsubishi 4G52 / 4G63

Large Image :  FCR55-1-4/2E Clutch Release Bearing Assembly For Mitsubishi 4G52 / 4G63 Get Best Price

Product Details:
Place of Origin: GUANGZHOU, CHINA
Brand Name: SDE or YUNLING
Certification: ISO / TS16949
Model Number: FCR55-1-4/2E
Payment & Shipping Terms:
Minimum Order Quantity: 50 PCS ( If we have goods in stock, the MOQ is 5 PCS. )
Price: Negotiable
Payment Terms: T / T; Western Union
Supply Ability: 10000 PCS
Detailed Product Description
OE Code: FCR55-1-4/2E Size: Standard Size
Brand: SDE Or YUNLING Material: Steel
Model: MITSUBISHI (import) GALANT III (A12_) 2.0 Application: DONGNAN (SOUEAST) DELICIA Bus 2.4 AWD 4G64S4M 2.0 4G63
Inner Ø: 30 Outer Ø: 43
Thick: 32
High Light:

FCR55-1-4/2E Clutch Release Bearing Assembly

,

4G63 Clutch Release Bearing Assembly

FCR55-1-4/2E Clutch Release Bearing Assembly For Mitsubishi 4G52 / 4G63



OE number of this clutch release assmebly is FCR55-1-4/2E. AISIN number is BM-017; EXEDY number is BR423, and HERTH+BUSS JAKOPARTS number is J2102102. The outer diameter is 55mm, inner diameter is 32mm, and the Bolt Hole Circle is 32mm. This clutch release bearing assembly is used for MITSUBISHI (import) GALANT III (A12_) 2.0 / MITSUBISHI (import) GALANT IV (A16_) 2.0 GLS (A163) / Mitsubishi (Imported) L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.0 (P03W, P13W) / MITSUBISHI (import) GALANT IV Station Wagon (A16_V) 2.0 GLX (A163V) / HILUX VIII Pickup (_N1_) 2.4 D 4WD (GUN125) / MITSUBISHI (import) L 300 / DELICA II Van (L03_P) 2.3 D (L038P, L068P) / MITSUBISHI (import) STARION (A18_A) 2.0 Turbo ECi (A183A) / MITSUBISHI (import) STARION (A18_A) 2.0 Turbo ECi (A183A) with 4G52 / 4G63 engine. The specification of this clutch release bearing assembly is 32*55*32mm.



Overview



OE code : FCR55-1-4/2E
Size : Standard Size
Type : CLUTCH RELEASE BEARING
Origin : China
Brand : SDE or YUNLING
Model : CLUTCH BEARING FOR DONGNAN (SOUEAST) DELICIA Bus FCR55-1-4/2E
Applicable models : FOR DONGNAN (SOUEAST) DELICIA Bus 2.4 AWD 4G64S4M 2.0 4G63
Material: Steel
MOQ : 100PCS
ENGINE: FOR DONGNAN (SOUEAST) 4G63 4G64S4M



Reference No

AISIN BM-017
ASHIKA 90-05-503
BLUE PRINT ADC43305
BLUE PRINT ADG03327
DAIKIN BRG423
EXEDY BR423
GMB GC32010
JAPANPARTS CF-006
JAPANPARTS CF-503
JAPANPARTS CF-508
JAPANPARTS J CF-503
KOYO RCTS324SA
LuK 500 0237 10
LuK 500 0237 60
LuK 500 0304 60
MECARM MR8328
METALCAUCHO 90503
NIPPARTS J2405003
NPS M240I03
NPS TKS551K
NTN FCR5512E
NTN FCR55142E
PFI PCR3592
SACHS 3 151 808 001
SACHS 3 151 831 001
SACHS 3 151 878 001
SNR BAC37300
VALEO 804109





Specifications



Inner Ø 32
Outer Ø 55
Thick 32
Thick.(min) 22



Applicable models



CAR MODEL YEARS ENGINE DISPLACEMENT POWER TYPE
MITSUBISHI (import) GALANT III (A12_) 2.0 1979-1980 4G52 1995 72 Saloon
MITSUBISHI (import) GALANT III (A12_) 2.0 GLX 1977-1980 4G52 1995 63 Saloon
MITSUBISHI (import) GALANT IV (A16_) 2.0 GLS (A163) 1980-1984 4G63 1997 75 Saloon
MITSUBISHI (import) GALANT IV (A16_) 2.0 Turbo ECi (A164) 1982-1984 4G63-T (ECI) 1997

125



Saloon
MITSUBISHI (import) GALANT IV (A16_) 2.3 Turbo-D (A167)

1980-1984



4D55 T



2347



62



Saloon



MITSUBISHI (import) GALANT IV Station Wagon (A16_V) 2.0 GLX (A163V)

1980-1983



4G63 (SOHC 8V)



1997



75



Estate



MITSUBISHI (import) GALANT IV Station Wagon (A16_V) 2.3 Turbo-D (A167V)

1983-1984



4D55 T



2347



62



Estate



MITSUBISHI (import) L 300 / DELICA II Bus (LO3_P/G, L0_2P) 2.0 4WD (L037G)



1986-1987



4G63 (SOHC 8V)



1997



65



Bus



MITSUBISHI (import) L 300 / DELICA II Bus (LO3_P/G, L0_2P) 2.3 D (L038P)

1983-1986



4D55



2346



50



Bus



MITSUBISHI (import) L 300 / DELICA II Van (L03_P) 2.3 D (L038P, L068P)

1983-1986



4D55



2346



50



From



Mitsubishi (Imported) L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.0 (P03W, P13W)

1986-1988



G63B



1997



65



Bus



Mitsubishi (Imported) L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.0 (P03W, P13W)

1986-2004



4G63 (SOHC 8V)



1997



66



Bus



Mitsubishi (Imported) L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.0 (P03W, P13W)

1986-2004



G63B



1997



64



Bus



Mitsubishi (Imported) L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.0 4WD (P23W, P03W, P13W)

1986-2004



4G63 (SOHC 8V)



1997



65



Bus



Mitsubishi (Imported) L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.0 4WD (P23W, P03W, P13W)

1986-2004



4G63 (SOHC 8V)



1997



66



Bus



Mitsubishi (Imported) L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.0 i (P00W, P03W, P13W) 1994-1998 4G63 (SOHC 16V) 1997 83 Bus
Mitsubishi (Imported) L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.4 (P04W, P14W)

1990-2004



4G64 (8V)



2351



82



Bus



Mitsubishi (import) L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.4 4WD (P24W)

1986-1990



G64B



2351



80



Bus



Mitsubishi (import) L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.4 i (P04W, P14W)

1994-2004



4G64 (16V)



2351



97



Bus



Mitsubishi (import) L 300 III Platform/Chassis (P1_T ) 2.0 (P13T)

1994-2000



4G63 (SOHC 16V)



1997



85



Platform/Chassis



Mitsubishi (import) L 300 III Van (P0_V, P1_V, P_2V) 2.0 (P03V, P13V)

1986-1996



G63B



1997



64



From



Mitsubishi (import) L 300 III Van (P0_V, P1_V, P_2V) 2.0 (P23V, P03V, P13V)

1994-1996



4G63 (SOHC 8V)



1997



78



From



Mitsubishi (import) L 300 III Van (P0_V, P1_V, P_2V) 2.0 (P23W, P23V)

1994-2002



4G63 (SOHC 16V)



1997



82



From



Mitsubishi (import) L 300 III Van (P0_V, P1_V, P_2V) 2.0 4WD (P23W, P23V)

1988-1994



4G63 (SOHC 8V)



1997



63



From



Mitsubishi (import) L 300 III Van (P0_V, P1_V, P_2V) 2.4 (P24V, P24W)

1986-1997



4G64 (8V),G64B



2351



82



From



Mitsubishi (import) L200 (K3_T, K2_T, K1_T, K0_T) 2.0 (K12T, K32T)

1986-1996



4G63 (SOHC 8V)



1997



75



Pickup



Mitsubishi (import) L200 (K3_T, K2_T, K1_T, K0_T) 2.0 (K32T, K12T)



1987-1990



4G63 (SOHC 8V)



1997



69



Pickup



Mitsubishi (Imported) L200 (K3_T, K2_T, K1_T, K0_T) 2.0 4WD (K32T, K22T)

1986-1996



4G63 (SOHC 8V)



1997



75



Pickup



Mitsubishi (import) L200 (K7_T, K6_T) 2.4 4WD (K75T)

1996-2007



4G64 (16V)



2351



97



Pickup



Mitsubishi (import) L400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W) 2.0 (PA3W)

1995-2002



4G63 (SOHC 16V)



1997



83



Bus



Mitsubishi (Imported) L400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W) 2.0 16V (PA3V/W, PB3V, PA3W)

1995-2000



4G63 (SOHC 16V)



1997



85



Bus



Mitsubishi (Imported) L400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W) 2.4 4WD

1996-2005



4G64 (16V)



2351



94



Bus



Mitsubishi (Imported) L400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W) 2.4 i 4WD (PD4V/W)

1995-2000



4G64 (16V)



2351



97



Bus



Mitsubishi (import) L400 Van (PD_W, PC_W, PB_V, PA_W, PA_V) 2.0

1996-2001



4G63 (SOHC 16V)



1997



85



From



Mitsubishi (import) L400 Van (PD_W, PC_W, PB_V, PA_W, PA_V) 2.0 (PA3W)

1994-2002



4G63 (SOHC 16V)



1997



83



From



Mitsubishi (import) L400 Van (PD_W, PC_W, PB_V, PA_W, PA_V) 2.4

1996-2006



4G64 (16V)



2351



97



From



MITSUBISHI (import) LANCER CELESTE Coupe (A7_) 2.0 GSR (A78A)

1975-1981



4G52



1995



66



Coupe



MITSUBISHI (import) LANCER CELESTE Coupe (A7_) 2.0 GSR (A78A)

1979-1981



4G52



1995



77



Coupe



MITSUBISHI (import) LANCER CELESTE Coupe (A7_) 2.0 GSR (A78A)

1977-1981



4G52



1995



71



Coupe



MITSUBISHI (import) LANCER II (A17_) 2.0 Turbo ECi (A176)

1981-1983



4G63-T (SOHC 8V)



1997



125



Saloon



MITSUBISHI (import) PAJERO I (L04_G, L14_G) 2.0 4WD

1983-1991



G63B



1997



81



Closed Off-Road Vehicle



MITSUBISHI (import) PAJERO I (L04_G, L14_G) 2.3 D All-wheel Drive (L049GW, L044GV)

1984-1986



4D55



2346



62



Closed Off-Road Vehicle



MITSUBISHI (import) PAJERO I (L04_G, L14_G) 2.6 4WD (L042G, L047G)

1986-1991



4G54



2555



79



Closed Off-Road Vehicle



MITSUBISHI (import) PAJERO I (L04_G, L14_G) 2.6 4WD (L042G, L047G) 1983-1987

4G54



2555



76



Closed Off-Road Vehicle



MITSUBISHI (import) PAJERO I Canvas Top (L04_G) 2.3 TD (L043G, L048G)

1982-1986



4D55 T



2347



62



Open Off-Road Vehicle



MITSUBISHI (import) PAJERO I Canvas Top (L04_G) 2.6 (L042G, L047G)

1983-1990



4G54



2555



76



Open Off-Road Vehicle



MITSUBISHI (import) PAJERO II (V3_W, V2_W, V4_W) 2.4 (V21W, V21C)

1991-1999



4G64 (8V)



2351



82



Closed Off-Road Vehicle



MITSUBISHI (import) PAJERO II Canvas Top (V2_W, V4_W) 2.4 (V41W, V21W, V21C)

1991-2000



4G64 (8V)



2351



82



Open Off-Road Vehicle



MITSUBISHI (import) PAJERO PININ I (H6_W, H7_W) 1.8 (H76W, H66W) 2001-2007 4G93 (SOHC 16V)

1834



84



Closed Off-Road Vehicle



MITSUBISHI (import) PAJERO PININ I (H6_W, H7_W) 1.8 GDI (H66W)

1999-2001



4G93 (GDI)



1834



88



Closed Off-Road Vehicle



MITSUBISHI (import) PAJERO PININ I (H6_W, H7_W) 2.0 GDI All-wheel Drive (H67W, H77W)

2000-2007



4G94 (GDI)



1999



95



Closed Off-Road Vehicle



MITSUBISHI (import) SAPPORO I (A12_) 2.0 (A123) 1979-1980 4G52 1995

79



Coupe
MITSUBISHI (import) SAPPORO I (A12_) 2.0 (A123) 1978-1980

4G52



1995



72



Coupe



MITSUBISHI (import) SAPPORO I (A12_) 2.0 (A123)

1978-1980



4G52



1995



66



Coupe



MITSUBISHI (import) SAPPORO II (A16_A) 2.0 GSL (A164A) 1980-1983

4G63 (SOHC 8V)



1997

75



Coupe



MITSUBISHI (import) SAPPORO II (A16_A) 2.0 GSR (A164A)

1980-1984



4G63 (SOHC 8V)



1997



82



Coupe



MITSUBISHI (import) SAPPORO II (A16_A) 2.0 Turbo ECi (A164)

1982-1983



4G63-T (ECI)



1997



125



Coupe



MITSUBISHI (import) STARION (A18_A) 2.0 Turbo ECi (A183A) 1985-1987

4G63-T/C



1997



132



Coupe



MITSUBISHI (import) STARION (A18_A) 2.0 Turbo ECi (A183A)

1982-1985



4G63-T (ECI)



1997



125



Coupe







Detailed Photos

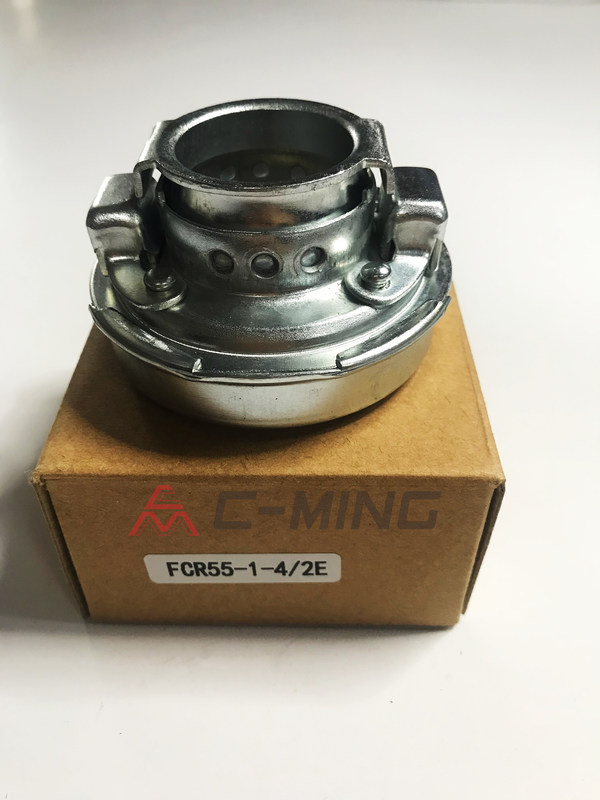

FCR55-1-4/2E Clutch Release Bearing Assembly For Mitsubishi 4G52 / 4G63 0FCR55-1-4/2E Clutch Release Bearing Assembly For Mitsubishi 4G52 / 4G63 1FCR55-1-4/2E Clutch Release Bearing Assembly For Mitsubishi 4G52 / 4G63 2
